08-ANT-0937

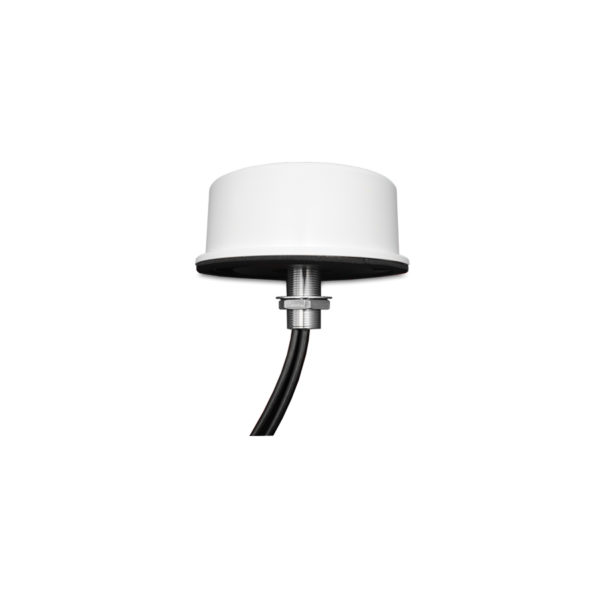

08-ANT-0937 | 4.9GHz (4.9 to 6 GHz) Police Mobile Public Safety Antenna

Public Safety Antenna 08-ANT-0937

description

Public safety antenna 08-ANT-0937 is a mobile antenna with a frequency range of 4.9GHz (4.9 – 6 GHz). Use this outdoor antenna as a police antenna.

The MIMO 5GHz Mobile Antenna by MP Antenna is a low profile Multi-Polarized MIMO antenna (Multiple-Input-Multiple-Output) providing superior patterning and continuous wideband performance (4.9-6GHz) for mobile data and voice communications. The MIMO 5GHz Antenna is available with one two three four or six separate antenna feeds allowing maximum diversity for 4.9GHz / 5.8GHz WiFi and WiMAX broadband wireless frequencies. Featuring a built in ground plane high performance low loss cables and high quality connectors for maximum system efficiency. Custom configurations are also available. Easily installs with a single 3/4 stud mount with coax cables feeding through.

Public safety antenna 08-ANT-0937 has three-dimensional antenna elements that allow for faster throughput speeds and greater spatial diversity and polarization diversity.

Applications

Features

Patented Multi-Polarized three dimensional element design
Available with 1 2 3 4 5 or 6 Separate Antenna Feeds
Multi-Polarized three dimensional antenna element design
Obstruction Penetrating transmit and receive
Enhanced Connectivity and Faster Throughput
Built In polarization diversity and spatial diversity
Low Profile and rugged design
RoHS Compliant

Downloads

Data Sheet 08-ANT-0937 5GHz Multiple Feed Antenna
Dimensional Drawing 08-ANT-0937 5GHz Multiple Feed Antenna
Build Sheet 08-ANT-0937 5GHz Multiple Feed Antenna

photos

Specifications


Model Number	08-ANT-0937
Frequency Range	4.9GHz to 6GHz
Gain	4 dBi
VSWR	<1.5:1
Ground Plane	Built In
Color	White or Black
Antenna Feeds	Upto 6 Feeds
Coax Length	Various
Coax Type	Low Loss 200 Series
Connector Type	Various
Polarization	Multi-Polarized
Power	50 Watts Input
Impedance	50 ohms nominal
Construction	UV Stabilized ASA
Environmental	Outdoor
Operation Temp	-40 to 85 deg C
Storage Temp	-40 to 85 deg C
Transport Temp	-40 to 85 deg C
IP Rating	IP67
Length	4.5 in
Width	4.5 in
Height	2.5 in
Weight	12 oz
Included Hardware	Nut and Washer
