08-ANT-0960

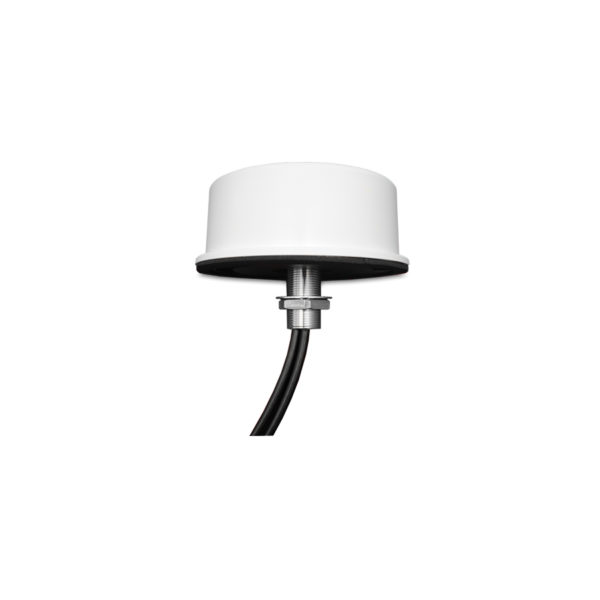

08-ANT-0960 | 3 to 4GHz Broadband Mobile  Wireless Antenna

Wireless Antenna 08-ANT-0960

  • 3GHz to 4GHz, 4 dBi
  • Mining Antenna
  • Mobile Antenna
  • Custom Configurations and Connectors
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

Wireless antenna 08-ANT-0960 is for wireless broadband and has a 3 – 4GHz frequency range. This mobile antenna is a MIMO antenna and a mining antenna.

The 08-ANT-0960 3GHz Mobile MIMO Antenna by MP Antenna is a low profile Multi-Polarized MIMO (Multiple-Input-Multiple-Output) antenna providing superior patterning and continuous wideband performance (3-4GHz) for fixed or mobile data communications. The 3GHz Mobile MIMO Antenna provides separate antenna feeds allowing maximum diversity for 3GHz WiFi broadband wireless frequencies. Featuring a built in ground plane high performance low loss cables and high quality connectors for maximum system efficiency. Custom configurations are also available.Ideal for outdoor and mobile WiMax .The MP 3GHz Multiple Feed Antenna allows users to transmit and receive in real world environments where other antennas fail to connect. Can be configured with one two three or four antenna feeds in one radome. Available with various connectors and coax pigtail lengths and works seamlessly with any radio repeater system or data device to ensure maximum reliability when it matters most.

Applications

  • 3-4 GHz Band
  • WiMax
  • Wireless Broadband Systems
  • Wireless Mesh Systems
  • Remote Video Monitoring
  • High Obstruction Deployments
  • Public Safety Communications
  • Outdoor Fixed or Mobile

Features

  • Patented Multi-Polarized three dimensional element design
  • Two three or four Separate Antenna Feeds
  • Obstruction Penetrating TX/RX
  • Enhanced Connectivity and Throughput
  • Built In Spatial Diversity
  • Wide Band Performance
  • Integrated Ground Plane
  • UV Stabilized Materials

Downloads

photos

Specifications

Model Number
08-ANT-0960
Frequency Range
3GHz to 4GHz
Gain
4 dBi
VSWR
<1.6:1
Ground Plane
Built In
Color
White or Black
Antenna Feeds
Upto 4 Feeds
Coax Length
Various
Coax Type
Low Loss 200 Series
Connector Type
Various
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
4.5 in
Width
4.5 in
Height
2.5 in
Weight
12 oz
Included Hardware
Nut and Washer
