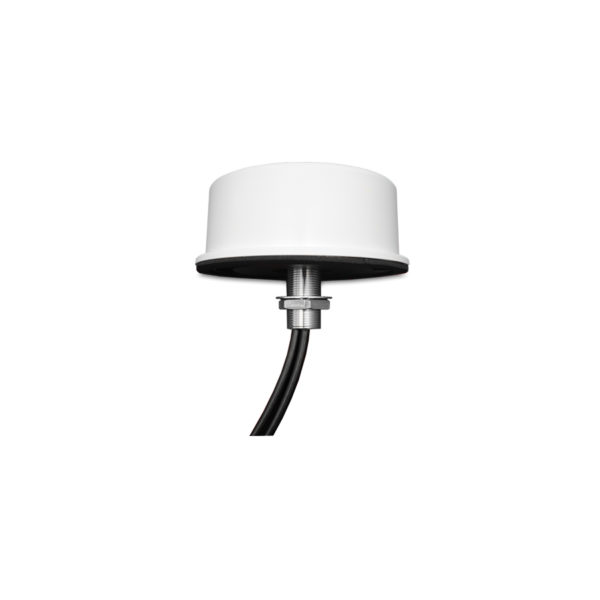

08-ANT-0940 | 2 to 3GHz Broadband Mobile  Wireless Antenna

Wireless Antenna 08-ANT-0940

  • 2GHz to 3GHz
  • 4 dBi
  • Wireless Antenna
  • Custom Configurations and Connectors
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

Wireless antenna 08-ANT-0940 is for wireless broadband and has a 2 – 3 GHz frequency range. This mobile antenna is a MIMO antenna and a mining antenna.

MP Antenna’s 2.4GHz Mobile MIMO Antenna by MP Antenna is a low profile Multi-Polarized MIMO (Multiple-Input-Multiple-Output) antenna providing superior patterning and continuous wideband performance (2-3GHz) for fixed or mobile data communications. The 2.4GHz Mobile MIMO Antenna is available with one two three or four separate antenna feeds allowing maximum diversity for 2.4GHz WiFi broadband wireless frequencies. Featuring a built in ground plane high performance low loss cables and high quality connectors for maximum system efficiency. Custom configurations are also available.

Applications

  • 2.4 GHz ISM Band
  • 802.11b g n Wireless Systems
  • Wireless Broadband Systems
  • WIMAX
  • Vehicle WiFi
  • Remote Video Monitoring
  • Public Safety Communications
  • Outdoor Fixed or Mobile

Features

  • Patented Multi-Polarized three dimensional element design
  • Available with 1 2 3 or 4 Separate Antenna Feeds
  • Obstruction Penetrating TX/RX
  • Enhanced Connectivity and Throughput
  • Built In Spatial Diversity
  • Wide Band Performance
  • Integrated Ground Plane
  • UV Stabilized Materials

Downloads

photos

Specifications

Model Number
08-ANT-0940
Frequency Range
2GHz to 3GHz
Gain
4 dBi
VSWR
<1.5:1
Ground Plane
Built In
Color
White or Black
Antenna Feeds
Upto 4 Feeds
Coax Length
Various
Coax Type
Low Loss 200 Series
Connector Type
Various
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
4.5 in
Width
4.5 in
Height
2.5 in
Weight
12 oz
Included Hardware
Nut and Washer
