08-ANT-0930

08-ANT-0930 | 2.4 5GHz Broadband Dual Band Wireless Antenna

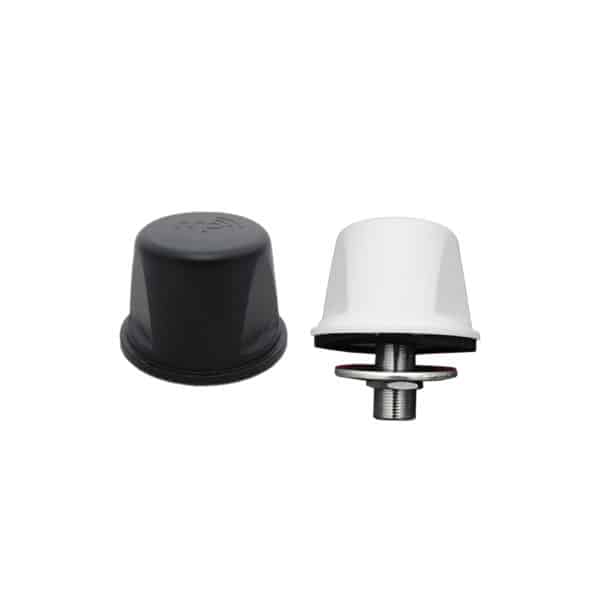

Wireless Antenna 08-ANT-0930

  • 2GHz to 3GHz, 4.9GHz to 6GHz
  • 6 dBi
  • Wireless Antenna
  • Maximum Signal Stability
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

Wireless antenna 08-ANT-0930 is a dual band antenna with a frequency range of 2 to 3 GHz and 4.9 to 6 GHz.2.4. This outdoor antenna is a mobile antenna for wireless broadband systems.

The Omni Dual Band-N is a low profile Multi-Polarized antenna designed for data communications. The exceptional effective hemispherical Multi-Polarized signal pattern provides unequalled wireless communication in “Real World” obstructed non-line-of-sight (NLOS) environments.

Wireless antenna 08-ANT-0930 utilizes signals in all polarizations allowing users to transmit and receive all available signals in real world obstructed environments where other antennas fail to connect.

See more WiFi Antennas from MP Antenna.

Applications

  • 2.4 and 5 GHz Band
  • 802.11b g n Wireless Systems
  • Wireless Broadband Systems
  • Wireless Mesh Systems
  • WIMAX
  • Vehicle WiFi
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating TX/RX
  • Enhanced Connectivity and Throughput
  • Built In Spatial Diversity
  • Low Profile
  • RoHS Compliant

Downloads

photos

Specifications

Model Number
08-ANT-0930
Frequency Range
2GHz to 3GHz, 4.9GHz to 6GHz
Gain
6 dBi
VSWR
<1.2:1
Ground Plane
Not Included
Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
N-Female
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
2.5 in
Width
2.5 in
Height
1.75 in
Weight
2.6 oz
Included Hardware
Nut and Washer
