08-ANT-0952

08-ANT-0952 | 2.4GHz Omni Directional Wireless Dual Band Mobile WiFi Antenna

WiFi Antenna 08-ANT-0952

  • 2.4GHz and 5GHz
  • 3 dBi
  • WiFi Antenna
  • Custom Configurations and Connectors
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

full_elevation_vertical

Vertical Radiation

Full Radiation Pattern

description

WiFi antenna 08-ANT-0952 has a frequency range of 2.4GHz. This omni directional antenna is both a mobile antenna and a dual band antenna. It’s Made in the USA and features wireless technology.

The MP Dual Band Micro Omni WiFi Antennas are the latest in Multi-Polarized antenna design. This dual band antenna is excellent for providing superior patterning and continuous performance for wireless communications on any access point router or wireless radio. The MP dual band omnidirectional antenna is ideal for Non Line Of Sight (NLOS) communications and highly obstructed deployments.

The compact antenna provides increased throughput and signal stability in obstructed environments and increases range and performance over standard dipole or singularly polarized antennas. The MP Micro Omni Antennas allow users to transmit and receive in real world environments where other antennas fail to connect.

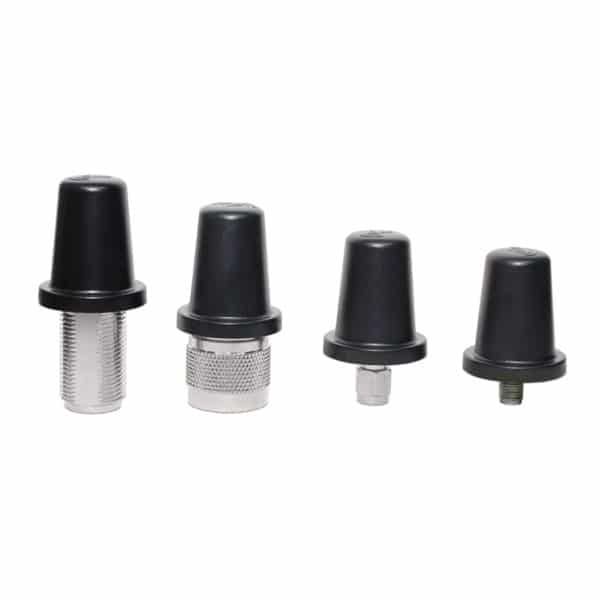

This antenna is available with N-Female N-Male SMA-Male SMA-Female RPSMA-Male and RPTNC Male to install seamlessly on any radio router or data device to ensure maximum reliability when it matters most. For custom please contact our sales team.

Applications

  • Dual Band antenna for 2.4GHz and 5 GHz Band
  • Wireless Broadband Systems
  • Fits any WiFi AP Router Bridge CPE
  • 2.4GHz and 5 GHz Band
  • 802.11 a b g n ac and all other 802.11 Wireless Systems
  • Wireless Broadband Systems
  • Wireless Mesh Systems
  • WIMAX

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating transmit and receive
  • Enhanced Connectivity and Throughput for any wireless network
  • Built In spatial diversity and polarization diversity allowing for more stable connections
  • Low Profile and rugged radome design
  • RoHS Compliant
  • Custom Configurations Available please contact our sales team

Downloads

photos

Specifications

Model Number
08-ANT-0952
Frequency Range
2.4GHz and 5GHz
Gain
3 dBi
VSWR
<1.5:1
Ground Plane
Built In
Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
Various
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
1.0 in
Width
1.0 in
Height
1.2 in
Weight
1.5 oz
Included Hardware
Nut and Washer (female connectors)
