08-ANT-0929

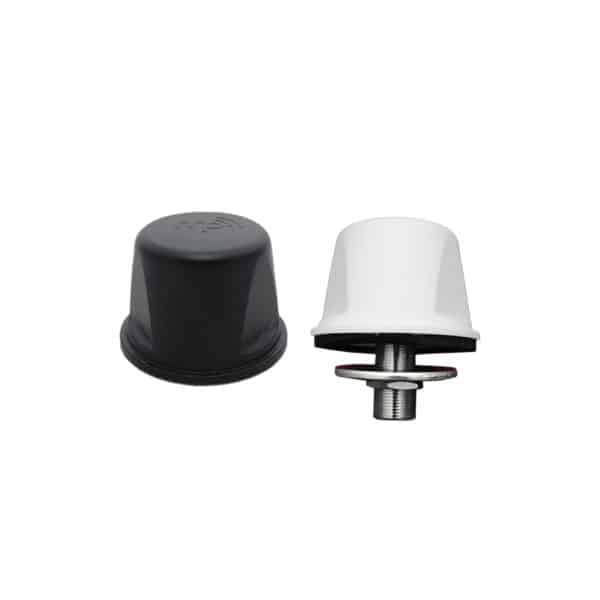

08-ANT-0929 | 3.3 to 3.7GHz Omni Directional Mobile Wireless Antenna

Wireless Antenna 08-ANT-0929

  • 3.3GHz to 3.7GHz, 6 dBi
  • Mining Antenna and Mobile Antenna
  • Omni Directional Antenna
  • Maximum Signal Stability
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

Wireless antenna 08-ANT-0929 is an omni directional antenna with a 3.3 – 3.7GHz frequency range. This mobile antenna and mining antenna is multi-polarized.

The Omni 3GHz surface mount antenna is a low profile Multi-Polarized antenna designed for mobile data communications. The exceptional effective hemispherical Multi-Polarized signal pattern provides unequalled wireless communication in “Real World” obstructed non-line-of-sight (NLOS) environments.

The Omni 3GHz surface mount antenna utilizes signals in all polarizations allowing users to transmit and receive all available signals in real world obstructed environments where other antennas fail to connect. This wireless antenna is also an omni directional antenna.

Wireless antenna 08-ANT-0929 is Made in the USA by MP Antenna, the leader in multi-polarized antenna technology.

Applications

  • Wireless Broadband Systems
  • High Obstruction Deployments
  • WIMAX

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating TX/RX
  • Enhanced Connectivity and Throughput
  • Built In Spatial Diversity
  • Low Profile
  • RoHS Compliant

Downloads

photos

Specifications

Model Number
08-ANT-0929
Frequency Range
3.3GHz to 3.7GHz
Gain
6 dBi
VSWR
<1.2:1
Ground Plane
Not Included
Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
N-Female
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
2.5 in
Width
2.5 in
Height
1.75 in
Weight
2.6 oz
Included Hardware
Nut and Washer
