08-ANT-0947

08-ANT-0947 | 5GHz WiFi (5.15 to 5.9GHz) Omni Directional WiFi Antenna

WiFi Antenna 08-ANT-0947

  • 5.15MHz to 5.9GHz
  • 4 dBi
  • WiFi Antenna
  • Maximum Signal Stability
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

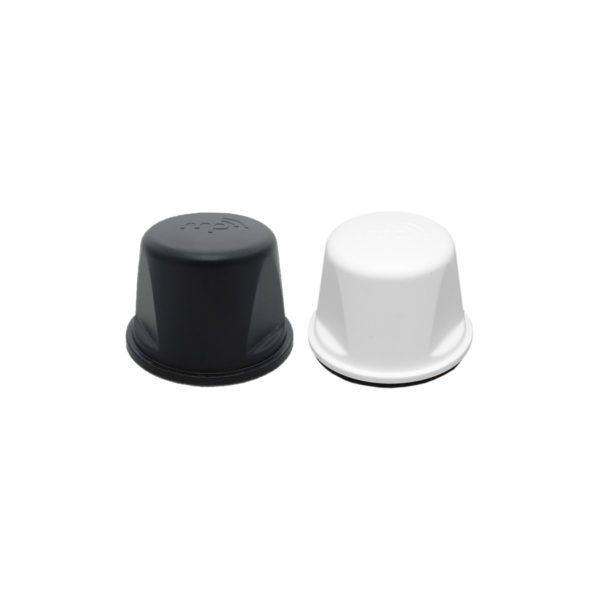

WiFi antenna 08-ANT-0947 is an omni directional antenna with a 5GHz WiFi (5.15 – 5.9GHz) frequency range. It’s a mobile antenna and a mining antenna that is white or black or color. The connector type is a high-frequency NMO mount.

The Omni 5GHz-NMO is a low profile Multi-Polarized antenna designed for mobile data communications. The exceptional effective hemispherical Multi-Polarized signal pattern provides unequalled wireless communication in “Real World” obstructed non-line-of-sight (NLOS) environments.

WiFi Antenna 08-ANT-0947 is an omni directional antenna with a 5GHz WiFi (5.15 – 5.9GHz) frequency range. It’s a mobile antenna and a mining antenna. utilizes signals in all polarizations allowing users to transmit and receive all available signals in real world obstructed environments where other antennas fail to connect.

Applications

  • 5 GHz Band
  • 802.11 a b g n ac and all other 802.11 Wireless Systems
  • Wireless Broadband Systems
  • WIMAX
  • Vehicle WiFi
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating Transmit and Receive
  • Enhanced Connectivity and Increased Throughput
  • Built In Spatial Diversity
  • High performance whipless low profile design for mobile application
  • RoHS Compliant
  • Mobile Antenna operates on 3 inch minimum ground plane
  • Fits High Frequency pin style NMO mounts only.

Downloads

photos

Specifications

Model Number
08-ANT-0947
Frequency Range
5.15MHz to 5.9GHz
Gain
4 dBi
VSWR
<1.5:1
Ground Plane
Not Included
Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
High Frequency NMO Mount
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
2.5 in
Width
2.5 in
Height
1.75 in
Weight
2 oz
Included Hardware
Antenna Only
