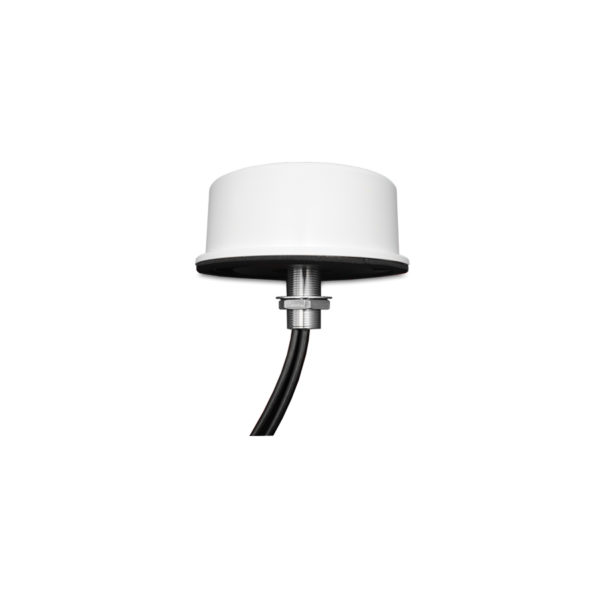

08-ANT-0944 | 2.4GHz Omni Directional Dual Band Mobile WiFi Antenna

WiFi Antenna 08-ANT-0944

  • 2GHz to 3GHz, 4.9GHz to 6GHz
  • 4 dBi
  • WiFi Antenna
  • Custom Configurations and Connectors
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

WiFi antenna 08-ANT-0944 has a frequency range of 2.4GHz. This omni directional antenna is a mobile antenna and a MIMO antenna. It’s a dual band antenna that’s Made in USA.

This dual band WiFi antenna  by MP Antenna is a low profile Multi-Polarized MIMO (Multiple-Input-Multiple-Output) antenna providing superior patterning and continuous wideband performance (2-3GHz/4.9-5.9GHz) for Mobile data communications. The MIMO Dual Band Antenna is Available with 1 2 3 or 4 Separate Antenna Feeds allowing maximum diversity for 2.4GHz / 4.9GHz / 5.8GHz WiFi and WiMAX broadband wireless frequencies.

Featuring a built in ground plane high performance low loss cables and high quality connectors for maximum system efficiency. Custom configurations are also available.

Applications

  • Wireless Broadband Systems
  • WiFi AP Router Bridge CPE
  • 2.4 and 5 GHz Band
  • Wireless Broadband Systems
  • Wireless Mesh Systems
  • Vehicle WiFi
  • High Obstruction Deployments
  • Outdoor Fixed or Mobile

Features

  • Patented Multi-Polarized three dimensional element design
  • Available with 1 2 3 or 4 Separate Antenna Feeds
  • Obstruction Penetrating TX/RX
  • Enhanced Connectivity and Throughput
  • Built In Spatial Diversity
  • Wide Band Performance
  • Integrated Ground Plane
  • UV Stabilized Materials

Downloads

photos

Specifications

Model Number
08-ANT-0944
Frequency Range
2GHz to 3GHz, 4.9GHz to 6GHz
Gain
4 dBi
VSWR
<1.5:1
Ground Plane
Built In
Color
White or Black
Antenna Feeds
Upto 4 Feeds
Coax Length
Various
Coax Type
Low Loss 200 Series
Connector Type
Various
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
4.5 in
Width
4.5 in
Height
2.5 in
Weight
12 oz
Included Hardware
Nut and Washer
