08-ANT-0928 | 5GHz WiFi (5.1 to 5.9GHz) Omni Mobile WiFi Antenna

08-ANT-0928
Request Quote

WiFi Antenna 08-ANT-0928

  • 5.1GHz to 5.9GHz
  • 6 dBi
  • WiFi Antenna
  • Maximum Signal Stability
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

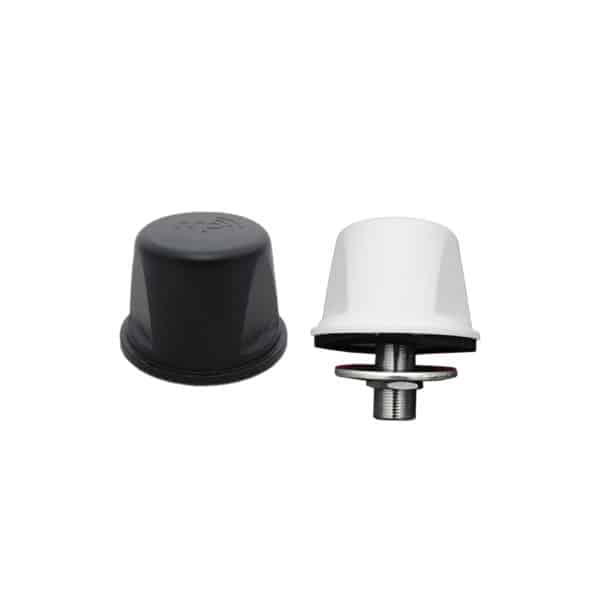

WiFi antenna 08-ANT-0928 is an omni directional antenna with a 5GHz WiFi (5.15 – 5.9GHz) frequency range. It’s a mobile antenna and a mining antenna.

The Omni N-Female 5GHz antenna is a low profile Multi-Polarized antenna designed for fixed and mobile data communications. With it’s three dimensional antenna element design the antenna provides a Multi-Polarized signal pattern for unequalled wireless communication in Real World obstructed non-line-of-sight (NLOS) environments.

WiFi Antenna 08-ANT-0928  utilizes signals in all polarizations allowing users to transmit and receive in real world obstructed environments where other antennas fail to connect. Ideal for fixing multi-path issues in MIMO and SiSO . The 5GHz Omni N-Female is light weight rugged and small in size. Installs easily with included lock washer and nut.

Applications

  • 5GHz Band
  • Wireless Broadband Systems
  • Wireless Mesh Systems
  • Vehicle
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating transmit and receive
  • Enhanced Connectivity and Faster Throughput
  • Built In polarization diversity and spatial diversity
  • Low Profile and rugged design
  • RoHS Compliant

Downloads

Data Sheet 08-ANT-0928 5GHz Surface Mount Antenna
Dimensional Drawing 08-ANT-0928 5GHz Surface Mount Antenna

photos

Specifications
Model Number
08-ANT-0928
Frequency Range
5.1GHz to 5.9GHz
Gain
6 dBi
VSWR
<1.2:1
Ground Plane
Built In
Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
N-Female
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
2.5 in
Width
2.5 in
Height
1.75 in
Weight
2.6 oz
Included Hardware
Nut and Washer
