08-ANT-0900 | 5GHz WiFi (5.1 to 5.9GHz) Omni Directional WiFi Antenna

08-ANT-0900
Request Quote

WiFi Antenna 08-ANT-0900

  • 4.9GHz to 5.9GHz
  • 8 dBi
  • WiFi Antenna
  • Maximum Signal Stability
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

full_elevation_vertical

Vertical Radiation

Full Radiation Pattern

description

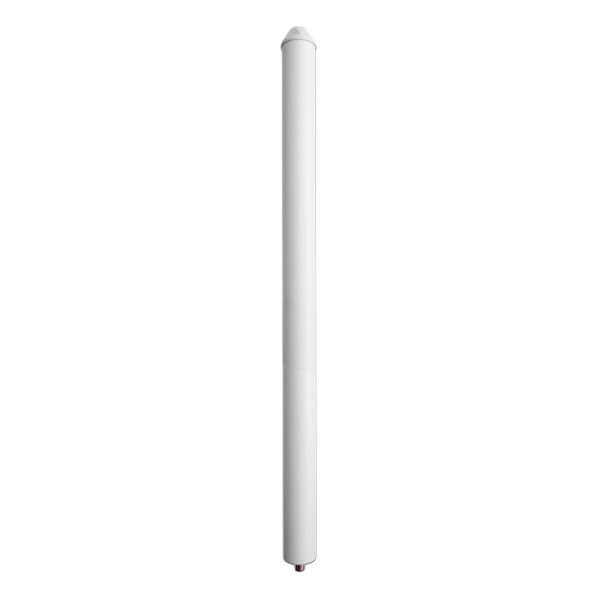

WiFi antenna 08-ANT-0900 is an omni directional antenna with a 5GHz WiFi (5.1 – 5.95GHz) frequency range. This multi-polarized antenna is used for 5GHz WiFi. It has a built-in ground plane and is white in color.

This high gain antenna radiates maximum power in all directions and provides superior patterning and continuous performance (5.1GHz-5.9GHz) for base station data communications. Applications include point-to-multipoint systems, wireless broadband systems, and access point router bridge CPE.

With built-in spatial diversity and patented 3-D Design, WiFi Antenna 08-ANT-0900  captures signals in any polarization allowing users to transmit and receive behind buildings hills and in valleys where other antennas cannot maintain connectivity. It’s also used for building penetration and high obstruction deployments.

Applications

  • 5GHz Band
  • Point to Multipoint Systems
  • Wireless Broadband Systems
  • Access Point Router Bridge CPE
  • Building Penetration and High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating TX/RX
  • Enhanced Connectivity and Throughput
  • Built In Spatial Diversity
  • Low Profile
  • RoHS Compliant
  • Light Weight

Downloads

Data Sheet 08-ANT-0900 Antenna
Dimensional Drawing 08-ANT-0900 Antenna
Custom Dimensional Drawing 08-ANT-0900 Antenna

photos

Specifications
Model Number
08-ANT-0900
Frequency Range
4.9GHz to 5.9GHz
Gain
8 dBi
VSWR
<1.5:1
Ground Plane
Built In
Color
White
Antenna Feeds
One
Coax Length
Various
Coax Type
Low Loss 200 Series on pigtail versions
Connector Type
N-Female (Various - pigtail version)
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized Polymers
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
2 in
Width
2 in
Height
18 in
Weight
6 oz
Included Hardware
Nut and Washer
