08-ANT-0883 | 2.4GHz Omni Directional Wireless Broadband WiFi Antenna

08-ANT-0883
Request Quote
Customize
Request Demo

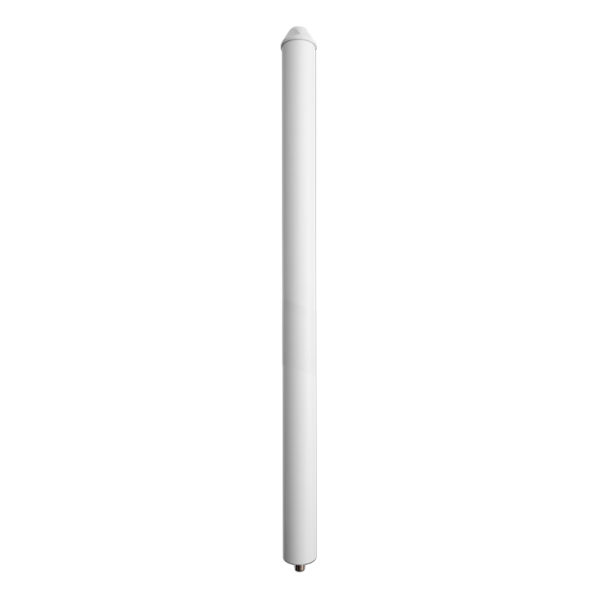

WiFi Antenna 08-ANT-0883

  • 2.4GHz to 2.5GHz, 10 dBi
  • Wireless Antenna
  • High Gain Antenna
  • Custom Configurations and Connectors
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

full_elevation_vertical

Vertical Radiation

Full Radiation Pattern

description

WiFi antenna 08-ANT-0883 is a high-gain omni directional antenna for wireless broadband. The frequency range for this wireless antenna is 2.4GHz. It’s multi-polarized and Made in USA.

The 2.4GHz 10dBi antenna from MP Antenna radiates maximum power in all directions and provides superior patterning and continuous performance (2.4GHz-2.5GHz) for base station data communications.

WiFi antenna 08-ANT-0883 has built-in spatial diversity and a patented 3D design. This high gain antenna captures signals in any polarization, allowing users to transmit and receive behind buildings hills and in valleys where other antennas cannot maintain connectivity. Ideal for WiFi deployments.

Applications

  • 2.4 GHz ISM Band
  • 802.11b g n Wireless Systems
  • Wireless Broadband Systems
  • WiFi Access Point Router Bridge CPE
  • Building Penetration and High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating TX/RX
  • Enhanced Connectivity and Throughput
  • Built In Spatial Diversity
  • Low Wind Load
  • Weatherproof construction
  • RoHS Compliant

Downloads

Data Sheet 08-ANT-0883 2.4GHz High Gain Omni Antenna
Dimensional Drawing 08-ANT-0883 2.4GHz High Gain Omni Antenna

photos

Specifications
Model Number
08-ANT-0883
Frequency Range
2.4GHz to 2.5GHz
Gain
10 dBi
VSWR
<1.5:1
Ground Plane
Built In
Color
White
Antenna Feeds
One
Coax Length
Various
Coax Type
Low Loss 200 Series on pigtail versions
Connector Type
Various
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized Polymers
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
2 in
Width
2 in
Height
62 in
Weight
1.5 lbs
Included Hardware
Antenna Only
