08-ANT-0867

08-ANT-0867 | 2.4GHz Omni Directional 120-Sector WiFi Antenna

WiFi Antenna 08-ANT-0867

  • 2GHz to 2.7GHz
  • 10 dBi
  • WiFi Antenna
  • Custom Configurations and Connectors
directional_azimuth_horizontal

Horizontal Radiation

Directional Radiation Pattern

directional_elevation_vertical

Vertical Radiation

Directional Radiation Pattern

description

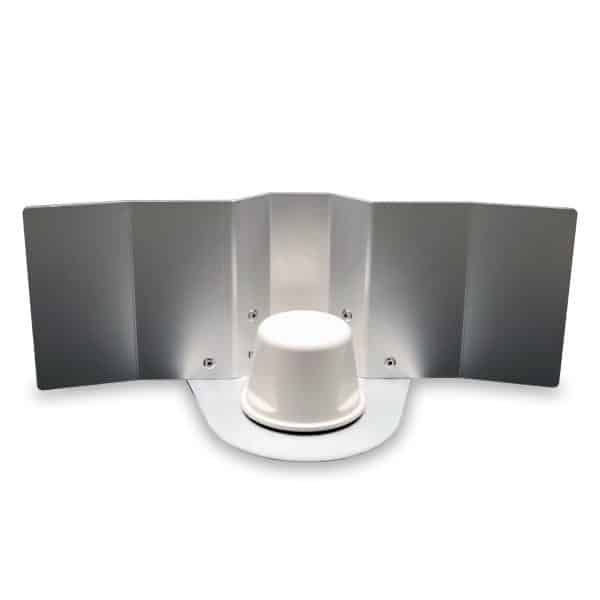

WiFi antenna 08-ANT-0867 is a 120-sector directional antenna with a frequency range of 2.4GHz. This outdoor antenna uses dependable wireless technology.

The Multi-Polarized Sector 120-2.4GHz is constructed of UV stabilized polymers and high grade aluminum for extremely long service life in the most demanding conditions. With a 120 degree directional pattern it provides exceptional 10dBi high gain effective power and is ideal for indoor and outdoor deployments where a sectorized approach is required to accommodate clients in a variety of points.

WiFi antenna 08-ANT-0867 weighs only 10 oz. It supports mast or wall mounting with mounting hardware. Multi-Polarized antenna technology provides unequalled wireless communication in “Real World” obstructed non-line-of-sight (NLOS) environments.

Applications

  • 2.4GHz ISM Band
  • 802.11 b g n Wireless Systems
  • Point-to-Point and Multipoint Systems
  • Wireless Broadband Systems
  • WiFi AP Router Bridge CPE
  • Building Penetration and High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating TX/RX
  • Built In Spatial Diversity
  • Excellent F/B (28 dB)
  • Light Weight/Low Wind Load
  • Mounting Hardware Included

Downloads

photos

Specifications

Model Number
08-ANT-0867
Frequency Range
2GHz to 2.7GHz
Gain
10 dBi
VSWR
<1.5:1
Ground Plane
Built In
Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
Various
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized Polymers High Grade Aluminum
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP66
Length
11 in
Width
6in
Height
4 in
Weight
10 oz
Included Hardware
Mast or Wall Mount
