08-ANT-0939 | 700 to 2700MHz Outdoor 120-Degree Directional Antenna

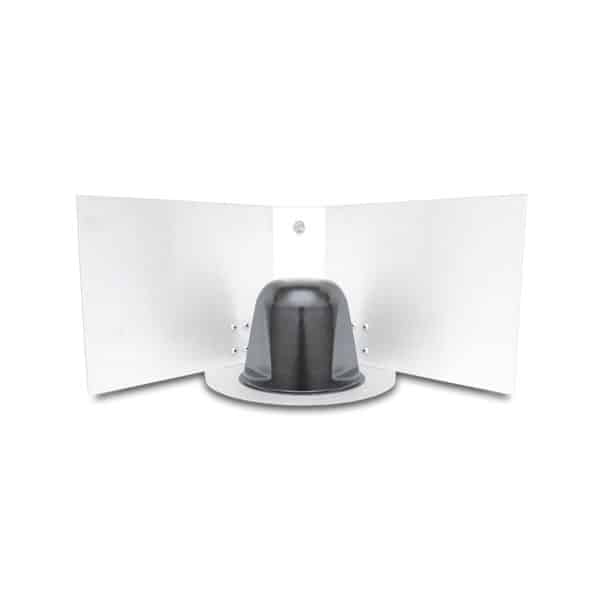

Directional Antenna 08-ANT-0939

  • 700MHz to 2700MHz, 10 dBI
  • 120 Degree Directional Antenna
  • Outdoor Antenna
  • Maximum Signal Stability
directional_azimuth_horizontal

Horizontal Radiation

Directional Radiation Pattern

directional_elevation_vertical

Vertical Radiation

Directional Radiation Pattern

description

Directional antenna 08-ANT-0939 has a 700 – 2700MHz frequency range. This 120-degree outdoor antenna is multi-polarized for signal stability. It’s Made in the USA by MP Antenna.

The Multi-Polarized Sector 120 700-2700MHz offered by MP Antenna is constructed of UV stabilized polymers and high grade aluminum for extremely long service life in the most demanding conditions. With a 120˚ directional pattern it provides exceptional 10dBi high gain effective power and is ideal for indoor and outdoor deployments where a sectorized approach is required to accommodate clients in a variety of points. The Sector 120 700-2700MHz can easily be mast or wall mounted with available mounting hardware. Multi-Polarized antenna technology provides unequalled wireless communication in “Real World” obstructed non-line-of-sight (NLOS) environments.

Applications

  • Point-to-Point and Multipoint Systems
  • Smart Grid
  • Wireless Broadband Systems
  • Building Penetration and High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating TX/RX
  • Built In Spatial Diversity
  • Excellent F/B (28 dB)
  • Light Weight/Low Wind Load
  • Mounting Hardware Included

Downloads

photos

Specifications

Model Number
08-ANT-0939
Frequency Range
700MHz to 2700MHz
Gain
10 dBi
VSWR
<1.5:1
Ground Plane
Built In
Color
White or Black
Antenna Feeds
One
Coax Length
Various
Coax Type
Low Loss 200 Series
Connector Type
N-Female
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized Polymers High Grade Aluminum
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
16 in
Width
11 in
Height
10 in
Weight
3.5 lbs
Included Hardware
Mast Mount Bracket
