08-ANT-0904 | 2.4 5GHz Dual Band Vehicle WiFi Wireless Antenna

08-ANT-0904
Request Quote
Customize
Request Demo

Wireless Antenna 08-ANT-0904

  • 2GHz to 3GHz, 4.9GHz to 6GHz
  • 6 dBi
  • Dual Band Antenna, Wireless Broadband, Vehicle WiFi
  • Maximum Signal Stability
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

Wireless antenna 08-ANT-0904 is a dual band antenna for wireless broadband and vehicle WiFi with a 2.4, 5GHz frequency range. It’s multi-polarized and Made in America.

The Omni Dual Band-NMO Antenna is a low profile Multi-Polarized antenna designed for mobile data communications. The exceptional effective hemispherical Multi-Polarized signal pattern provides unequalled wireless communication in “Real World” obstructed non-line-of-sight (NLOS) environments.

The Omni Dual Band-NMO Antenna utilizes signals in all polarizations allowing users to transmit and receive all available signals in real world obstructed environments where other antennas fail to connect.

Applications

  • 2.4 and 5 GHz Band
  • 802.11 a b g n ac and all other 802.11 Wireless Systems
  • Wireless Broadband Systems
  • Wireless Mesh Systems
  • WIMAX
  • Vehicle WiFi
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating TX/RX
  • Enhanced Connectivity and Throughput
  • Built In Spatial Diversity
  • Low Profile
  • RoHS Compliant

Downloads

Data Sheet 08-ANT-0904 Dual Band Antenna
Dimensional Drawing 08-ANT-0904 Dual Band Antenna

photos

Specifications
Model Number
08-ANT-0904
Frequency Range
2GHz to 3GHz, 4.9GHz to 6GHz
Gain
6 dBi
VSWR
<1.2:1
Ground Plane
Not Included

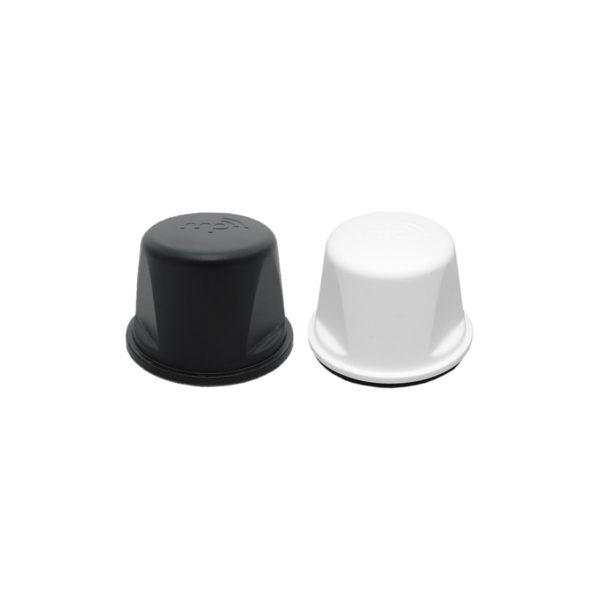

Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
High Frequency NMO Mount
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
2.5 in
Width
2.5 in
Height
1.75 in
Weight
2 oz
Included Hardware
Antenna Only
