08-ANT-0943 | 2.4GHz Omni Dual Band Broadband WiFi Antenna

08-ANT-0943
Request Quote

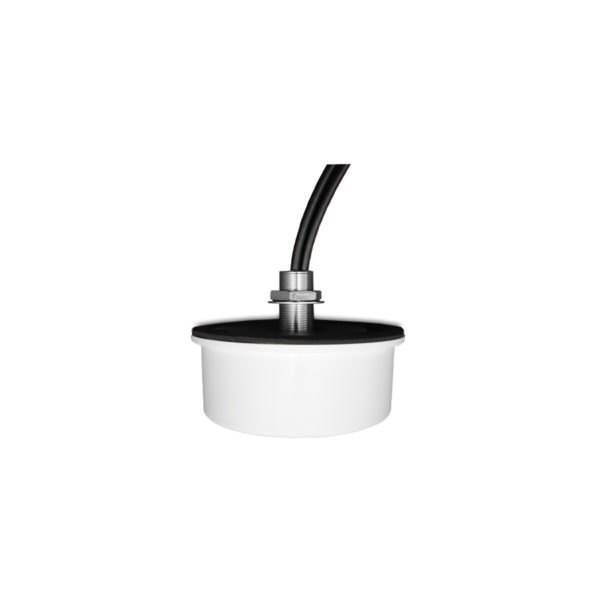

WiFi Antenna 08-ANT-0943

  • 2GHz to 3GHz, 4.9GHz to 6GHz
  • 4 dBi WiFi Antenna
  • Dual Band Antenna and Indoor Antenna
  • Custom Configurations and Connectors
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

WiFi antenna 08-ANT-0943 has a 2.4GHz frequency range. This omni directional antenna is both a dual band antenna and an indoor antenna. It’s multi-polarized and Made in America.

The Dual Band Indoor Antenna by MP Antenna is a low profile Multi-Polarized MIMO (Multiple-Input-Multiple-Output) antenna providing superior patterning and continuous wideband performance (2-3GHz/4.9-5.9GHz) for Indoor data communications. The MIMO Dual Band Antenna is available with 1 2 3 or 4 Separate Antenna Feeds allowing maximum diversity for 2.4GHz / 4.9GHz / 5.8GHz WiFi and WiMAX broadband wireless frequencies.

WiFi antenna 08-ANT-0943 features a built in ground plane high performance low loss cables and high quality connectors for maximum system efficiency. Custom configurations are also available.

Applications

  • Wireless Broadband Systems
  • WiFi AP Router Bridge CPE
  • 2.4 and 5 GHz Band
  • Wireless Broadband Systems
  • Wireless Mesh Systems
  • Vehicle WiFi
  • High Obstruction Deployments
  • Indoor Fixed or Mobile

Features

  • Patented Multi-Polarized three dimensional element design
  • Available with 1 2 3 or 4 Separate Antenna Feeds
  • Obstruction Penetrating TX/RX
  • Enhanced Connectivity and Throughput
  • Built In Spatial Diversity
  • Wide Band Performance
  • Integrated Ground Plane
  • UV Stabilized Materials

Downloads

Data Sheet 08-ANT-0943 Antenna
Dimensional Drawing 08-ANT-0943 Antenna
Radiation Pattern 08-ANT-0943 Antenna

photos

Specifications
Model Number
08-ANT-0943
Frequency Range
2GHz to 3GHz, 4.9GHz to 6GHz
Gain
4 dBi
VSWR
<1.5:1
Ground Plane
Built In
Color
White or Black
Antenna Feeds
Upto 4 Feeds
Coax Length
Various
Coax Type
Low Loss 200 Series
Connector Type
Various
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
indoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
4.5 in
Width
4.5 in
Height
2.5 in
Weight
12 oz
Included Hardware
Nut and Washer
