08-ANT-0874

08-ANT-0874 | 2.4GHz Omni Directional WiFi Router WiFi Antenna

WiFi Antenna 08-ANT-0874

  • 2GHz to 3GHz, 3 dBi
  • WiFi Router Antenna
  • Wireless Technology
  • Custom Configurations and Connectors
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

full_elevation_vertical

Vertical Radiation

Full Radiation Pattern

description

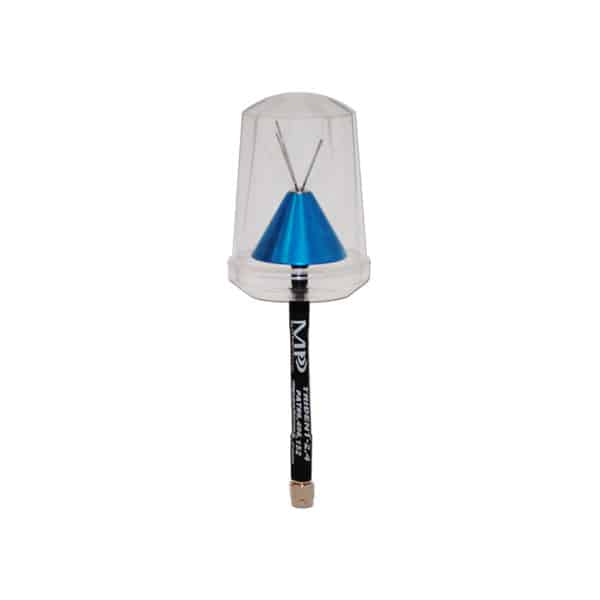

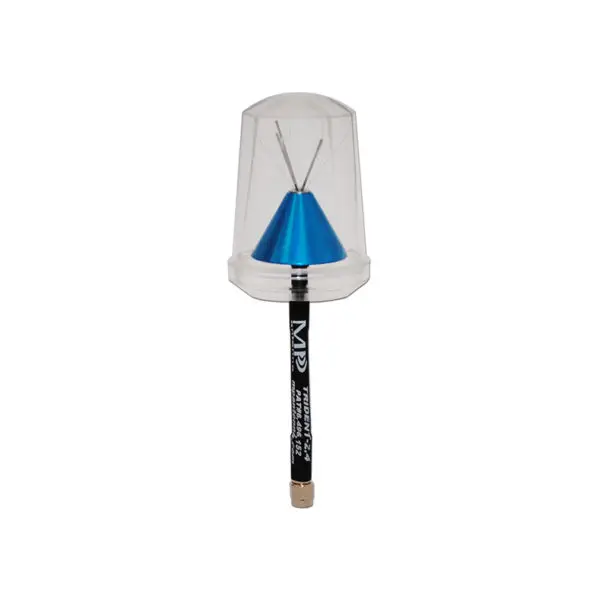

WiFi antenna 08-ANT-0874 is an omni directional antenna for a WiFi router. The frequency range is 2.4GHz and uses dependable wireless technology.

The Trident 2.4GHz WiFi Antenna offered by MP Antenna is an easy to install solution that plugs directly into the antenna port of your existing wireless device to increase wireless speed and connectivity in homes buildings offices marinas and any real world obstructed environment. A large problem with many wireless networks is the poor coverage area of standard wireless devices due to inefficient antenna design.

Unlike standard antennas the Trident WiFi Antenna combines stunning visual design with Multi-Polarized antenna technology to create a spherical-like signal pattern. The Trident WiFi Antenna can be used in numerous where standard antenna technology cannot maintain an adequate signal.

In almost every Non-Line-Of-Sight (NLOS) situation where obstructions wreak havoc on signal integrity the Multi-Polarized Trident improves the connection stabilizes the signal and increases data throughput.

For a quick and easy evaluation find areas where you typically encounter a weak or sporadic WiFi signal. Install the Trident WiFi Antenna on the router or your wireless device and go to the same areas. The signal will be more stable allowing even a weak signal to provide faster data throughput. The secret lies in the science of the multipolarization.

With built in spatial and polarization diversity, WiFi Antenna 08-ANT-0874 locks onto and reduces instantaneous signal loss which slows data throughput. By holding the signal wireless devices maintain data integrity and data transfer. Due to its high data content streaming video provides the most dramatic results. Multi-Polarized antenna technology provides improved wireless communication in “Real World” obstructed non-line-of-sight (NLOS) environments.

For ultimate performance use MP Antenna technology to further improve connectivity throughput and network performance on all wireless devices.

Applications

  • 2.4 GHz ISM Band
  • 802.11 a b g n ac and all other 802.11 Wireless Systems
  • Wireless Broadband Systems
  • WiFi Access Point Router Bridge CPE
  • USB and PCI Wireless Cards
  • Building Penetration and High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating TX/RX
  • Enhanced Connectivity and Throughput
  • Built In Spatial Diversity
  • Easy Installation
  • RoHS Compliant

Downloads

photos

Specifications

Model Number
08-ANT-0874
Frequency Range
2GHz to 3GHz
Gain
3 dBi
VSWR
<1.5:1
Ground Plane
Built In
Color
Clear or White
Antenna Feeds
One
Coax Length
16 in
Coax Type
Low Loss 200 Series
Connector Type
Various
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized Polymers High Grade Aluminum
Environmental
Indoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
N/A
Length
2 in
Width
2 in
Height
4 in
Weight
1.6 oz
Included Hardware
Antenna Only
