08-ANT-0908ST

08-ANT-0908ST | Omni Directional DAS Outdoor UHF VHF Antenna

UHF VHF Antenna 08-ANT-0908ST

  • Omni Directional Antenna
  • Outdoor Antenna
  • DAS Antenna
  • Maximum Signal Stability, Various 12MHz Bandwidth, 3 dBi
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

full_elevation_vertical

Vertical Radiation

Full Radiation Pattern

description

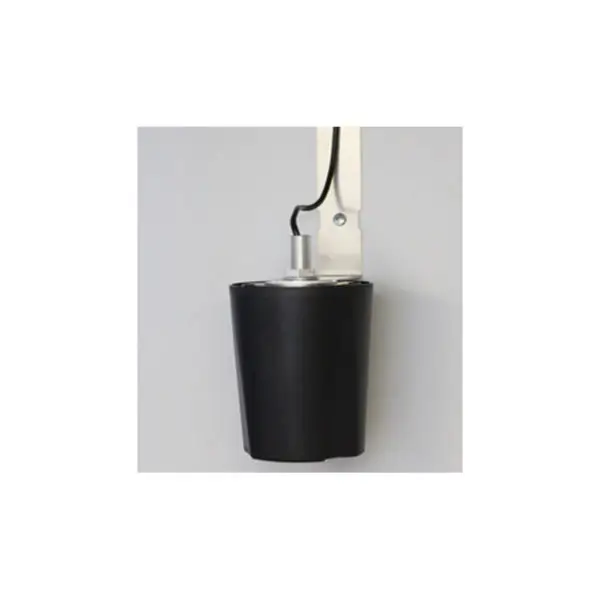

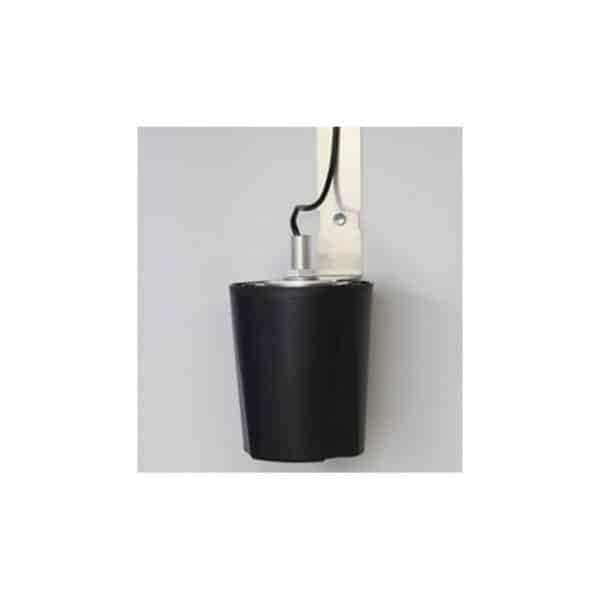

UHF VHF Antenna 08-ANT-0908ST is an omni directional antenna for outdoor use. This DAS antenna is multi-polarized and provides maximum signal stability.

The Omni VHF or UHF BDA DAS Antenna provides superior patterning and continuous performance for fixed voice communications. The Omni VHF/UHF BDA DAS Antenna allows users to transmit and receive in real world environments where other antennas fail to connect. Designed for installations where an outdoor rated antenna is needed such as a parking garage DAS Systems or Stadium Bi directional amplifier. Installs easily with included surface mounting hardware can also be bracket mounted or mounted above ceilings. Available with a 12MHz bandwidth click on Part Numbers for a list of frequencies.

See more UHF VHF Antennas from MP Antenna.

Applications

  • Outdoor DAS BDA Systems
  • Remote Monitoring
  • VHF/UHF Vehicle Communications
  • Parking Garages
  • Stadiums
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Maximum Signal Stability
  • Built In Spatial Diversity
  • RoHS Compliant
  • Compact Design
  • VHF and UHF Configurations Available

Downloads

photos

Specifications

Model Number
08-ANT-0908ST
Frequency Range
Various 12MHz Bandwidth
Gain
3 dBi
VSWR
2.0:1
Ground Plane
Built In
Color
White or Black
Antenna Feeds
One
Coax Length
Various
Coax Type
Low Loss 200 Series
Connector Type
High Frequency NMO Mount
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
4.75 in
Width
4.75 in
Height
5.75 in
Weight
7 oz
Included Hardware
Nut and Washer
