08-ANT-0864

08-ANT-0864 | 400 to 500MHz Land Mobile Radio UHF VHF Antenna

UHF VHF Antenna 08-ANT-0864

description

UHF VHF antenna 08-ANT-0864 has a 400-500MHz frequency range. This wireless antenna is multi-polarized. It’s a two way radio antenna for land mobile radio.

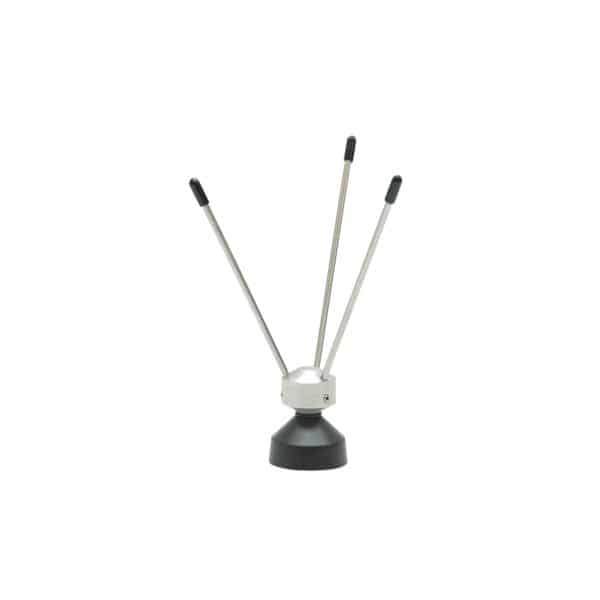

Designed for Remote Monitoring and Two-Way Government/Commercial radio communications the Multi-Polarized Super-M 400 Base Station antenna offers a light weight unique tri-element construction and is easily installed with included mast mounting hardware. The Super-M 400 Base Station seamlessly covers the frequency range from 400MHz to 500MHz providing unequaled wireless communication in “Real World” obstructed non-line-of-sight (NLOS) environments. For ultimate performance use Super-M antennas on the receiver and transmitter to further reduce problematic dead zones and increase signal stability.

See more UHF VHF Antennas from MP Antenna.

Applications

Features

Downloads

Data Sheet 08-ANT-0864 400MHz Mobile Antenna
Dimensional Drawing 08-ANT-0864 400MHz Mobile Antenna

photos

Specifications


Model Number	08-ANT-0864
Frequency Range	400MHz to 500MHz
Gain	4 dBi
VSWR	<2:1
Ground Plane	Not Included
Color	N/A
Antenna Feeds	One
Coax Length	N/A
Coax Type	N/A
Connector Type	Standard NMO
Polarization	Multi-Polarized
Power	50 Watts Input
Impedance	50 ohms nominal
Construction	Stainless Steel, Aluminum
Environmental	Outdoor
Operation Temp	-40 to 85 deg C
Storage Temp	-40 to 85 deg C
Transport Temp	-40 to 85 deg C
IP Rating	N/A
Length	5.25 in
Width	5.25 in
Height	6.5 in
Weight	2.4 oz
Included Hardware	Antenna Only
