MP Antenna

08-ANT-0860

08-ANT-0860 | 25MHz to 6GHz HAM Radio Mobile UHF VHF Antenna

ham scanner antenna 08-ANT-0860
Request Quote
Customize
Request Demo

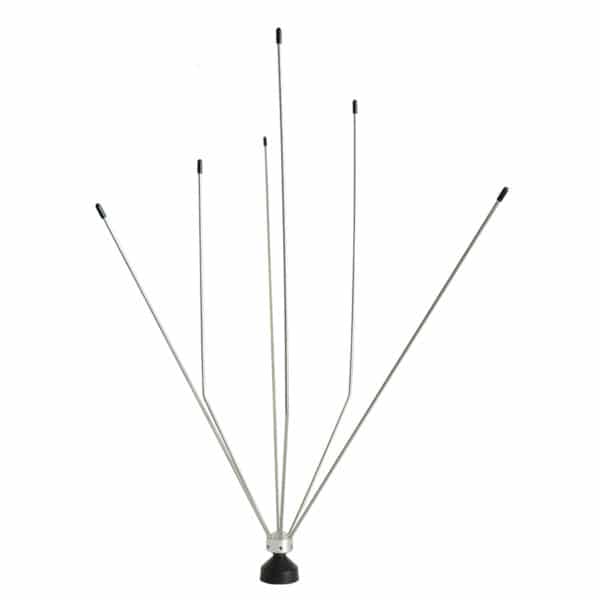

UHF VHF Antenna 08-ANT-0860

  • 25MHz to 6GHz
  • 3 dBi
  • Two Way Radio
  • Land Mobile Radio
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

UHF VHF antenna 08-ANT-0860 has a 25MHz – 6GHz frequency range. This HAM radio antenna is multi-polarized and a two way radio antenna for land mobile radio.

Designed for HAM Scanner and Two-Way Government/Commercial communications the MultiPolarized Super-M Ultra Mobile antenna covers the frequency range from 25MHz to 6GHz (88MHz – 6GHz transmit) providing unequaled wireless communication in Real World obstructed non-line-of-sight (NLOS) environments. The Super-M Ultra Mobile antenna is the gold level standard of two way communication incorporating Multipolarization for ultimate signal stability and is the widest bandwidth antenna on the market. For ultimate performance use Super-M antennas on the receiver and transmitter to further reduce problematic dead zones and flutter.

Discover other UHF and VHF Antennas from MP Antenna.

Applications

  • Commercial Radio
  • Government Public Safety Communications
  • Military
  • Maritime
  • HAM Radio
  • Scanner

Features

  • Patented Multi-Polarized three dimensional element design
  • Ultra Wide band
  • Flutter Reduction
  • Built In Spatial Diversity
  • Elevation Pattern: Peak signal from the horizon to 30 degrees above; Effective Spherical Signal Pattern
  • RoHS Compliant

Downloads

Data Sheet 08-ANT-0860 Super-M HAM Radio Mobile Antenna
Dimensional Drawing 08-ANT-0860 Super-M HAM Radio Mobile Antenna

photos

Specifications
Model Number
08-ANT-0860
Frequency Range
25MHz to 6GHz
Gain
3 dBi
VSWR
<2:1
Ground Plane
Not Included
Color
N/A
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
Standard NMO
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
Stainless Steel, Aluminum
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
N/A
Length
12 in
Width
12 in
Height
19 in
Weight
7 oz
Included Hardware
Antenna Only
