08-ANT-0901 | 896 to 960MHz Mobile Multiband Omni Directional Antenna

08-ANT-0901
Request Quote

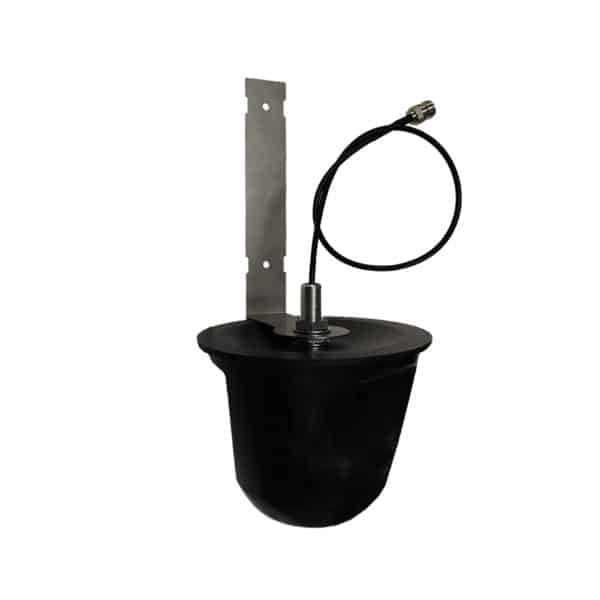

Omni Directional Antenna 08-ANT-0901

  • 896MHz to 960MHz. 3 dBi
  • Indoor Antenna and Outdoor Antenna
  • Omni Antenna
  • Custom Configurations and Connectors
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

full_elevation_vertical

Vertical Radiation

Full Radiation Pattern

description

Omni directional antenna 08-ANT-0901 (896 – 960MHz) is for land mobile radio and wireless broadband. It’s a multiband antenna for indoor and outdoor use.

The Omni-900MHz by MP Antenna is a 900 MHZ Omni Antenna designed for outdoor and indoor radio communications. The 900MHz Omni Antenna provides superior patterning and performance (896MHz – 960MHz) for fixed voice and data communications and allows users to transmit and receive in real world environments where other antennas fail to connect. With an integrated ground plane the 900MHz Omni Antenna installs on any surface and works seamlessly with any radio repeater system or data device to ensure maximum reliability when it matters most.

See more 700MHz to 900MHz Antennas from MP Antenna.

Applications

  • Phone Systems
  • Public Safety Communications
  • 902MHz - 928MHz Band
  • Remote Monitoring
  • SCADA
  • Smart Grid
  • Building Penetration
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating TX/RX
  • Enhanced Connectivity and Throughput
  • Built In Spatial Diversity
  • Integrated Ground Plane
  • UV Satbilized Materials
  • Single 3/4” Stud Mount

Downloads

Data Sheet 08-ANT-0901 Antenna
Dimensional Drawing 08-ANT-0901 Antenna

photos

Specifications
Model Number
08-ANT-0901
Frequency Range
896MHz to 960MHz
Gain
3 dBi
VSWR
<1.5:1
Ground Plane
Built In
Color
White or Black
Antenna Feeds
One
Coax Length
Various
Coax Type
Low Loss 200 Series
Connector Type
Various
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized Polymers
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
7.5 in
Width
7.5 in
Height
7 in
Weight
12 oz
Included Hardware
Antenna Only
