MP Antenna

08-ANT-0890

08-ANT-0890 | 698 to 999MHz Omni Directional Land Mobile NMO Antenna

08-ANT-0890
Request Quote
Customize
Request Demo

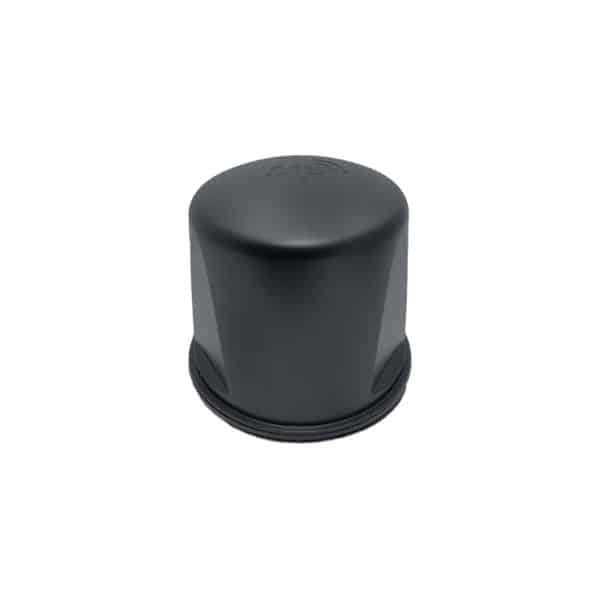

NMO Antenna 08-ANT-0890

  • 698MHz to 999MHz, 5.2 dBi, Maximum Signal Stability
  • Omni Directional Antenna
  • Land Mobile Radio
  • Wireless Broadband
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

NMO antenna 08-ANT-0890 has a 698 – 999MHz frequency range. Use this omni directional antenna for land mobile radio and wireless broadband.

The SenComm NMO Mount Antenna by MP antenna is the latest in Multi-Polarized technology providing superior patterning for mobile voice and data communication from 698MHz-999MHz. Tested and approved by first responders the SenComm NMO Mount Antenna utilizes signals in all polarizations allowing users to transmit and receive all available signals in real world obstructed environments where other antennas fail to connect. The SenComm NMO Mount Antenna works seamlessly with any radio or data device to ensure maximum reliability for emergency services when it matters most.

See more 700MHz to 900MHz Antennas from MP Antenna.

Applications

  • Public Safety Communications
  • 902MHz - 928MHz ISM
  • Wireless Broadband Systems
  • Smart Grid Monitoring Systems
  • SCADA
  • M2M
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Multiband Performance (698MHz-999MHz)
  • Maximum Signal Stability
  • Built In Spatial Diversity
  • Easy Installation
  • RoHS Compliant
  • Fits Standard Antenna NMO Mount

Downloads

Data Sheet 08-ANT-0890 NMO Mount Antenna
Dimensional Drawing 08-ANT-0890 NMO Mount Antenna

photos

Specifications
Model Number
08-ANT-0890
Frequency Range
698MHz to 999MHz
Gain
5.2 dBi
VSWR
<1.8:1
Ground Plane
Not Included
Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
Standard NMO Mount
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP66
Length
4.5 in
Width
4.5 in
Height
4 in
Weight
4 oz
Included Hardware
Antenna Only
