MP Antenna

08-ANT-1072

08-ANT-1072 | 5GHz MIMO Directional Sector Antenna

5GHz MIMO Sector
Request Quote
Customize
Request Demo

MIMO Sector Antenna 08-ANT-1072

  • 4.9GHz and 5GHz Bands, 12 dBi
  • 60 x 60 Degree Sector Antenna
  • Wireless Broadband
  • Maximum Signal Stability
directional_azimuth_horizontal

Horizontal Radiation

Directional Radiation Pattern

directional_elevation_vertical

Vertical Radiation

Directional Radiation Pattern

description

08-ANT-1072 is a directional sector antenna with a frequency range of 4.9GHz to 5.9GHz for wide area coverage.

The 08-ANT-1072 is Multi-Polarized and designed to provide wide area coverage in a small form factor that is needed in mining, port, warehouse, and autonomous applications.

Constructed with impact resistant acetal Delrin, and machined aluminum, the effective directional Multi-Polarized signal pattern provides unequalled wireless communication in “Real World” obstructed non-line-of-sight (NLOS) environments.

The 08-ANT-1072 Rugged MIMO Sector Antenna utilizes signals in all polarizations allowing users to transmit and receive all available signals in real world obstructed environments where other antennas fail to connect.

Applications

  • 4.9GHz Band and 5 GHz Band
  • All 802.11 Wireless Systems
  • Wireless Broadband Systems
  • Wireless Mesh Systems
  • Mining Antenna
  • Underground Networks MSHA
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating Transmit and Receive
  • Enhanced Connectivity and Increased Throughput
  • Built In Spatial Diversity
  • Compact Size
  • 60 Degree
  • RoHS Compliant
  • Rugged Impact Resistant Design

Downloads

Data Sheet 08-ANT-1072-2X-M 5GHz MIMO Sector Antenna
Dimensional Drawing 08-ANT-1072-2X-M 5GHz MIMO Sector Antenna

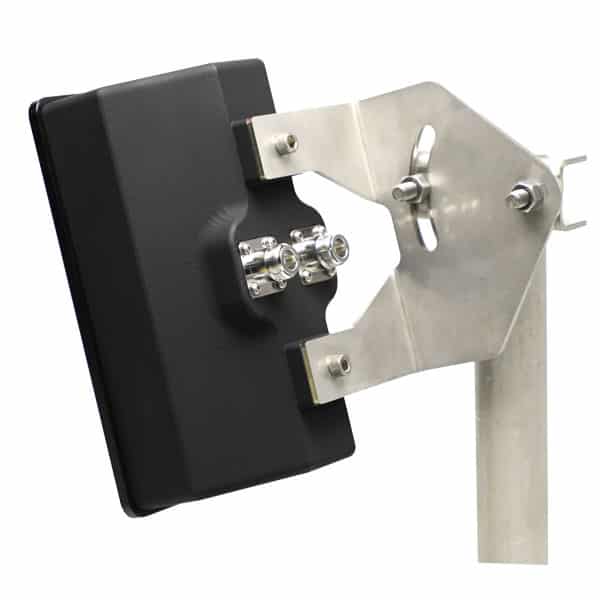

photos

Specifications
Model Number
08-ANT-1072
Frequency Range
4.9GHz to 5.9GHz
Gain
12 dBi
VSWR
<1.6:1
Ground Plane
Built In
Color
Black
Antenna Feeds
Two
Coax Length
N/A
Coax Type
N/A
Connector Type
N-Female
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
Machined Impact Resistant Delrin, Aluminum.
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
3.75 in
Width
4.62 in
Height
7.62 in
Weight
17 oz
Included Hardware
Mast Mounting Bracket
