08-ANT-1095

08-ANT-0956 | 3.5 to 3.7GHz Omni Directional  CBRS Antenna

CBRS Antenna 08-ANT-1095

omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

full_elevation_vertical

Vertical Radiation

Full Radiation Pattern

description

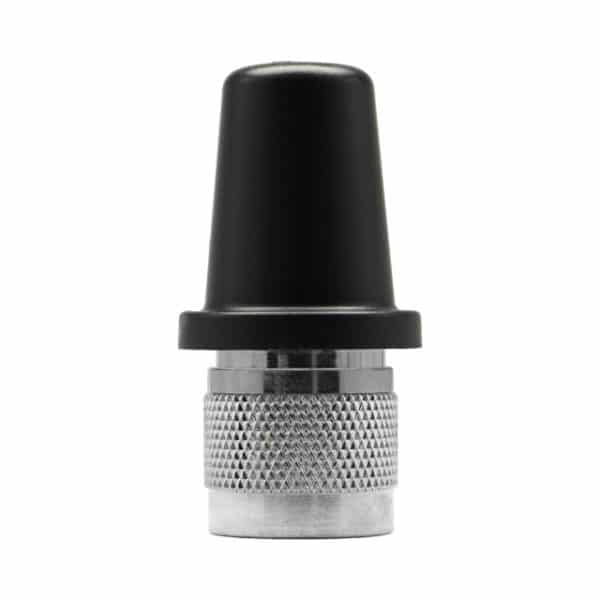

CBRS antenna 08-ANT-0956 has a frequency range of 3.5 – 3.7GHz. This omni directional antenna is a Micro CBRS Antenna for both indoor and outdoor use.

The MP Micro Omni CBRS Antenna is the latest in Multi-Polarized technology providing superior patterning and continuous performance for wireless communications. Ideal for Non Line Of Sight (NLOS) and highly obstructed deployments. This compact antenna provides increased throughput and signal stability in obstructed environments.

This wireless antenna allows users to transmit and receive in real world environments where other antennas fail to connect. Available in N-Male to install seamlessly on any radio router or data device to ensure maximum reliability when it matters most.

Applications

Features

Downloads

photos

Specifications

Model Number
08-ANT-1095
Frequency Range
3.5GHz to 3.7GHz
Gain
3 dBi
VSWR
<1.6:1
Ground Plane
Built In
Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
N-Male
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized Polymers High Grade Aluminum
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
1.0 in
Width
1.0 in
Height
1.2 in
Weight
2.0 oz
Included Hardware
N/A
