08-ANT-0863

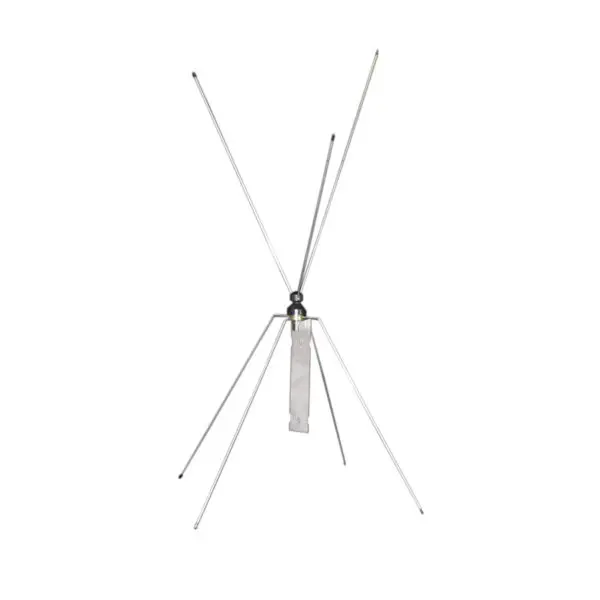

08-ANT-0863 | 25 to 1300MHz HAM Radio Base Station UHF VHF Antenna

UHF VHF Antenna 08-ANT-0863

  • Reduce dead zones and flutter
  • 25MHz to 1300MHz. 3 dBI
  • Land Mobile Radio and HAM Radio Antenna
  • Base Station Antenna
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

full_elevation_vertical

Vertical Radiation

Full Radiation Pattern

description

UHF VHF antenna 08-ANT-0863 has a 25 – 1300MHz frequency range. This HAM radio antenna is for base stations and land mobile radio. It’s a two way radio antenna.

Designed for base station HAM Radio and Scanner the MultiPolarized Super-M Classic Base Station antenna offers a light weight construction and is easily mast mounted with included hardware. The Super-M Classic Base Station out performs other HAM radio antennas seamlessly covers a frequency range from 25MHz to 1.3GHz (receive) and 2-Meter 220 and 440 bands (transmit) providing unequaled wireless communication in “Real World” obstructed non-line-of-sight (NLOS) environments. MultiPolarized technology with MP Antenna design and production standards make the Super-M Classic Base Station the ideal antenna for signal stability in HAM Radio and Scanner including UHF Band and VHF Band. For ultimate performance use Super-M antennas on the receiver and transmitter to further reduce problematic dead zones and flutter.

See more UHF VHF Antennas from MP Antenna.

Applications

  • Commercial Radio
  • Government Public Safety Communications
  • Military
  • Maritime
  • HAM Radio
  • Scanner

Features

  • Patented Multi-Polarized three dimensional element design
  • Flutter Reduction
  • 360 Degree Azimuth Beam Width
  • Built In Spatial Diversity
  • Elevation Pattern: Peak signal from 15 degrees below the horizon to 30 degrees above; Effective Spherical Signal Pattern
  • RoHS Compliant
  • Mast Mount Hardware Included

Downloads

photos

Specifications

Model Number
08-ANT-0863
Frequency Range
25MHz to 1300MHz
Gain
3 dBi
VSWR
<2:1
Ground Plane
Built In
Color
N/A
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
N-Female
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
Stainless Steel, Aluminum
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
N/A
Length
21 in
Width
21 in
Height
34 in
Weight
1.4 lbs
Included Hardware
Mast Mount Bracket
