08-ANT-0861

08-ANT-0861 | 25MHz to 6GHz HAM Radio Base Station UHF VHF Antenna

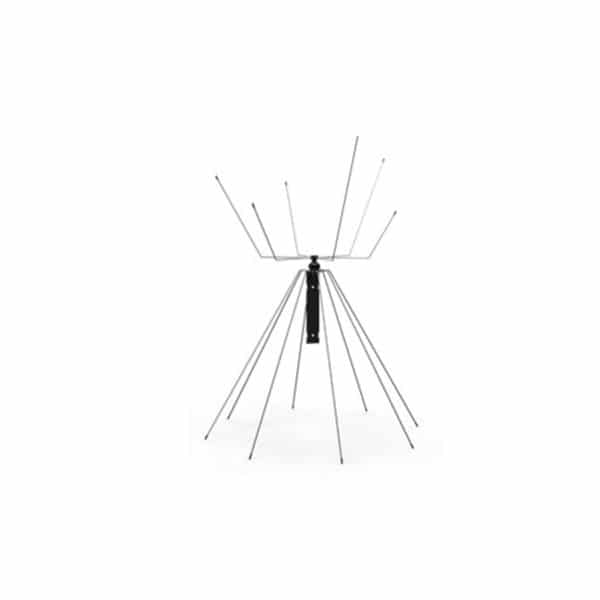

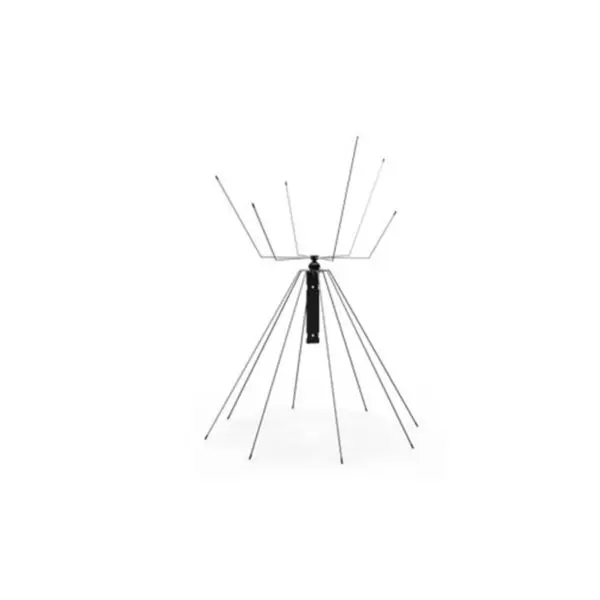

UHF VHF Antenna 08-ANT-0861

  • 25MHz to 6GHz, 3 dBi
  • Two Way Radio Antenna
  • Land Mobile Radio
  • HAM Radio Antenna
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

full_elevation_vertical

Vertical Radiation

Full Radiation Pattern

description

UHF VHF antenna 08-ANT-0861 has a 25MHz – 6GHz frequency range. This HAM radio base station antenna and two way radio antenna is for land mobile radio.

Designed for HAM Scanner and Two-Way Government/Commercial communications the MultiPolarized Super-M Ultra Base Station antenna seamlessly covers the frequency range from 25MHz to 6GHz (88MHz – 6GHz transmit) providing unequaled wireless communication in “Real World” obstructed non-line-of-sight (NLOS) environments. The Super-M Ultra Base Station antenna is the gold level standard of two-way communication incorporating MP Antenna technology for ultimate signal stability and is the widest bandwidth antenna on the market. For ultimate performance use Super-M antennas on the receiver and transmitter to further reduce problematic dead zones and flutter.

See more UHF VHF Antennas from MP Antenna.

Applications

  • Commercial Radio
  • Government Public Safety Communications
  • Military
  • Maritime
  • HAM Radio
  • Scanner

Features

  • Patented Multi-Polarized three dimensional element design
  • Ultra Wide Band
  • Flutter Reduction
  • Built In Spatial Diversity
  • Elevation Pattern: Peak signal from 15 degrees below the horizon to 30 degrees above; Effective Spherical Signal Pattern
  • RoHS Compliant
  • Mast Mount Hardware Included

Downloads

photos

Specifications

Model Number
08-ANT-0861
Frequency Range
25MHz to 6GHz
Gain
3 dBi
VSWR
<2:1
Ground Plane
Built In
Color
N/A
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
N-Female
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
Stainless Steel, Aluminum
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
N/A
Length
28 in
Width
28 in
Height
39 in
Weight
2 lbs
Included Hardware
Mast Mount Bracket
