08-ANT-0918 | 740 to 870MHz  Mobile Omni Directional Antenna

08-ANT-0918
Request Quote

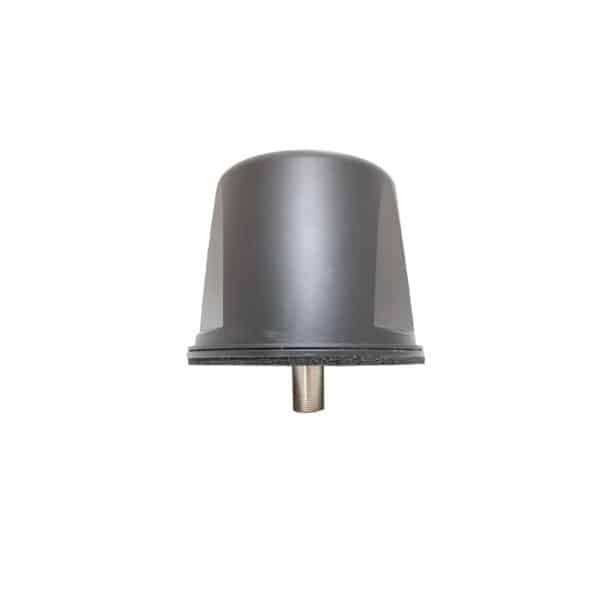

Omni Directional Antenna 08-ANT-0918

  • 740MHz to 870MHz, 5.2 dBi, Maximum Signal Stability
  • Mining Antenna
  • Land Mobile Radio
  • Wireless Broadband
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

Omni directional antenna 08-ANT-0918 has a 740 – 870MHz frequency range. Use as a mining antenna, for land mobile radio, and with wireless broadband.

The 740MHz Wideband Omni-N by MP antenna is the latest in Multi-Polarized technology providing superior patterning for mobile voice and data communication from 740MHz-870MHz. Tested and approved for mining communications the 740MHz Wideband Omni-N Antenna utilizes signals in all polarizations allowing users to transmit and receive all available signals in real world obstructed environments where other antennas fail to connect. The 740MHz Wideband Omni-N Antenna works seamlessly with any radio or data device to ensure maximum reliability for emergency services when it matters most.

See more 700MHz to 900MHz Antennas from MP Antenna.

Applications

  • Mining Communications
  • Public Safety Communications
  • Wireless Broadband Systems
  • Smart Grid Monitoring Systems
  • SCADA
  • M2M
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Multiband Performance 740MHz-870MHz
  • Maximum Signal Stability
  • Built In Spatial Diversity
  • Easy Installation
  • RoHS Compliant
  • High Impact Radome

Downloads

Data Sheet 08-ANT-0918 Surface Mount Antenna
Dimensional Drawing 08-ANT-0918 Surface Mount Antenna

photos

Specifications
Model Number
08-ANT-0918
Frequency Range
740MHz to 870MHz
Gain
5.2 dBi
VSWR
<1.7:1
Ground Plane
Not Included
Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
N-Female
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
4.5 in
Width
4.5 in
Height
4 in
Weight
8 oz
Included Hardware
Nut and Washer
