08-ANT-0935

08-ANT-0935 | 700 to 2700MHz Mobile Multiband Cellular Antenna

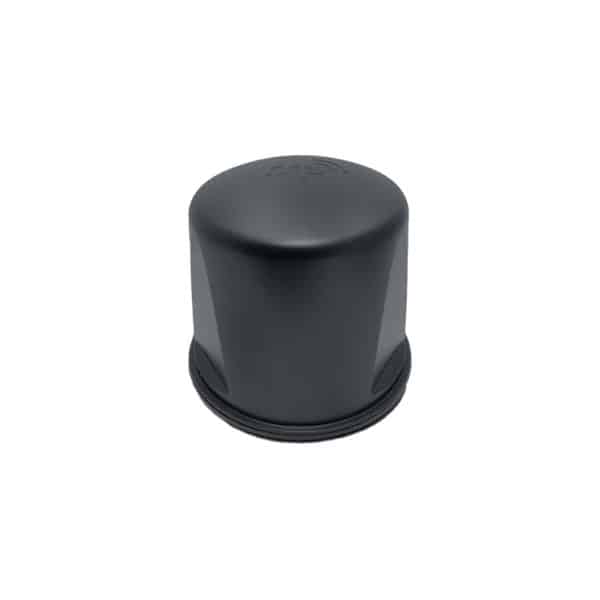

Cellular Antenna 08-ANT-0935

  • 700MHz to 2700MHz
  • 5 dBi
  • Cellular Antenna
  • Maximum Signal Stability
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

Cellular antenna 08-ANT-0935 (700 – 2700MHz) is a multiband antenna for LTE, GSM, and PTC applications. It’s multi-polarized and Made in America.

The LTE GSM PTC Antenna is the highest rated antenna for cellular PTC systems featuring Multi-Polarized three dimensional antenna design. This technology provides superior patterning and continuous wideband performance from 700MHz – 2700MHz for mobile voice and data communications. This multi band antenna has been tested and approved by class one and commuter rail and undergone rigorous environmental and performance testing for approval on carrier network. The MP PTC antenna allows users to transmit and receive in real world environments where other antennas fail to connect. Easily installs on High Frequency Pin Style NMO Mounts and works seamlessly with any radio repeater system or data device to ensure maximum reliability when it matters most. Fits High Frequency Pin Style NMO Mounts Only.

See more 700MHz to 900MHz Antennas from MP Antenna.

Applications

  • Train and Rail PTC Communications
  • 3G CDMA GSM PCS LTE
  • Remote Monitoring
  • M2M
  • Designed for High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Multiband Continuous Performance for LTE Cellular GSM (700MHz-2700MHz)
  • Low Profile and rugged radome design
  • Built In spatial diversity and polarization diversity allowing for more stable connections
  • Obstruction Penetrating transmit and receive
  • Easy Installation
  • RoHS Compliant
  • Fits High Frequency NMO mounts only.

Downloads

photos

Specifications

Model Number
08-ANT-0935
Frequency Range
700MHz to 2700MHz
Gain
5 dBi
VSWR
<1.8:1
Ground Plane
Not Included
Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
High Frequency NMO Mount
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP66
Length
4.5 in
Width
4.5in
Height
4 in
Weight
4 oz
Included Hardware
Antenna Only
